نرم افزار AVL FIRE™ M
AVL FIRE™ M is a novel solution for generating, executing and analyzing standard CFD models. It offers a comprehensive set of new capabilities for pre-processing, main program and post-processing, and is the rst FIRETM version integrated in the AVL Simulation Desktop – a highly functional Graphical User Interface (GUI) also providing common project and data management for all CAE tools developed at AVL Advanced Simulation Technologies. This enables easy information sharing and supports inter-disci- plinary simulation tasks.
چالش ها
Model generation
- How easy is it to generate a model?
- Can multiple domains be meshed simultaneously without arbitrary interface connection?
Managing multiple domains and multiple materials
- Am I able to treat multiple domains in a single model?
- How can I handle heat transfer across multiple domains and domain interfaces?
- Is there a consistent material property database accessible to me?
Investigating large numbers of designs
- Is it possible to parameterize my model and to easily generate variants?
- How can I analyze and judge all my simulation results?
راهکار AVL

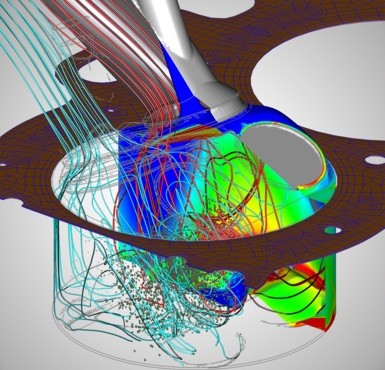

AVL FIRE™ M is the solution for optimizing performance parameters of flow-carrying elements. It also allows accurate prediction of heat transfer between fluid and structure and thermal load of solid parts.

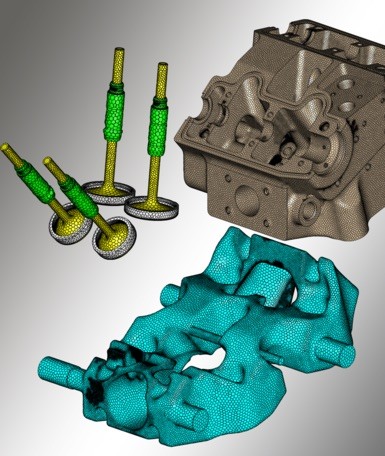

The software provides problem oriented, simple to use pre-processing solutions for geometries of all complexity levels. Multi-domain models are meshed in a single step. Domain interfaces are precisely maintained and do not require the generation of arbitrary connections.
The main program is fully parallelized for maximum computing performance. Besides flow simulation, heat transfer and temperature fields in solid parts can be calculated seamlessly. Easy access to a comprehensive material property database supports users in characterizing even very complex models.
AVL FIRE™ M models can be parameterized easily. Users can turn any input into a parameter. In minutes variants can be derived with the help of embedded DOE and a case explorer. Simulation results are displayed multi-dimensional thus cause and effect of flow phenomena can be judged quickly and accurate. Automatic template based reporting is available and can be executed both online interactively and offline script based.
